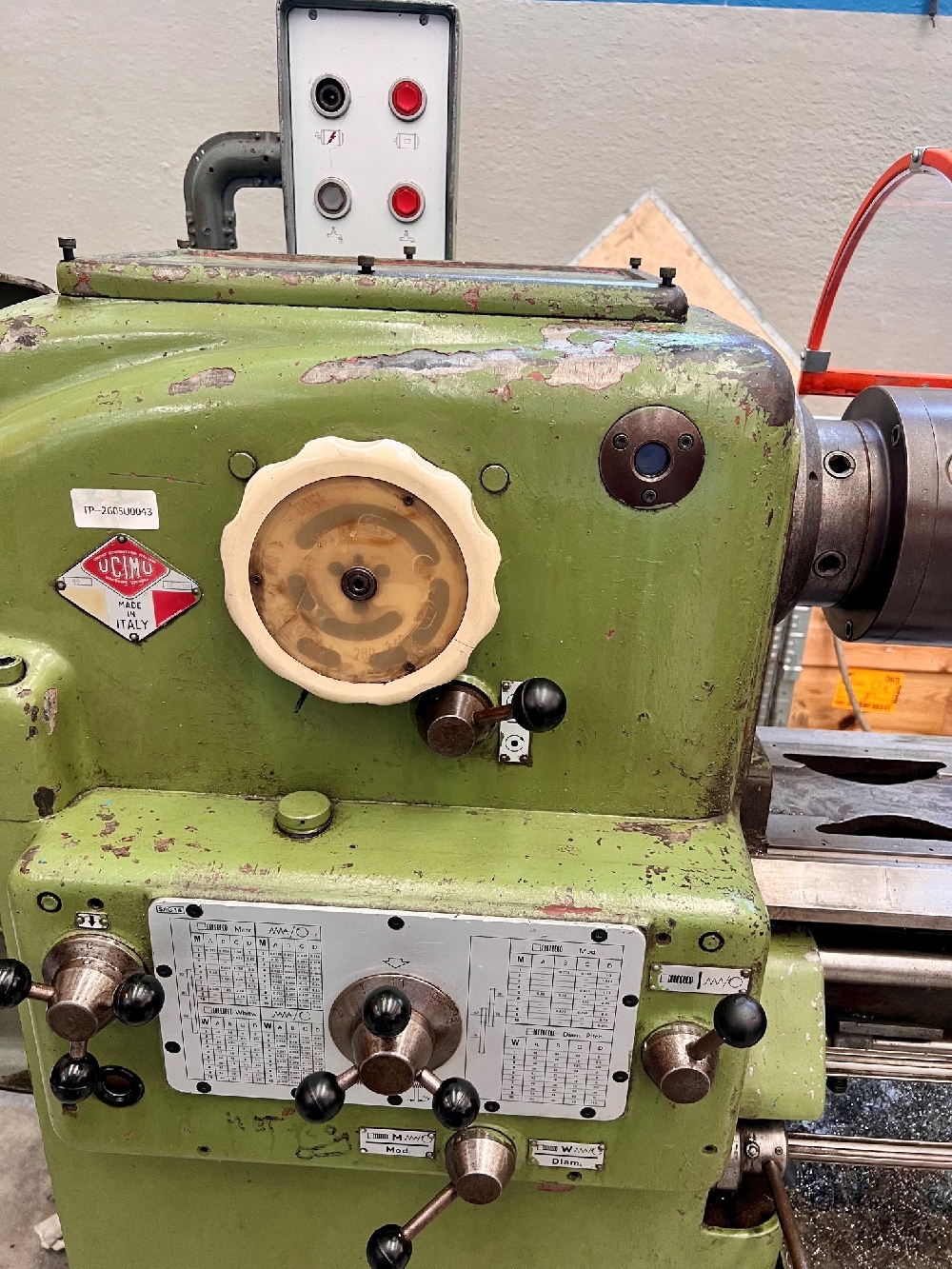

CONVENTIONAL LATHE "GRAZIANO"

Model: SAG 14 (180X1000)
Year:
Number:
Code: TP--2605U0043

Technical info:



Height centres	mm.	180
Distance between centres	mm.	1000
Max swing over bed	mm.	360
Max swing over carriage	mm.	220
Spindle bore	mm.	51
Internal taper of tailstock quill	MK	3
Spindle speed	rpm	50-1500
Motor power	Hp	5
Dimensions	mm.	2300x800x1300h
Weight	Kg.	1300

ACCESSORIES:

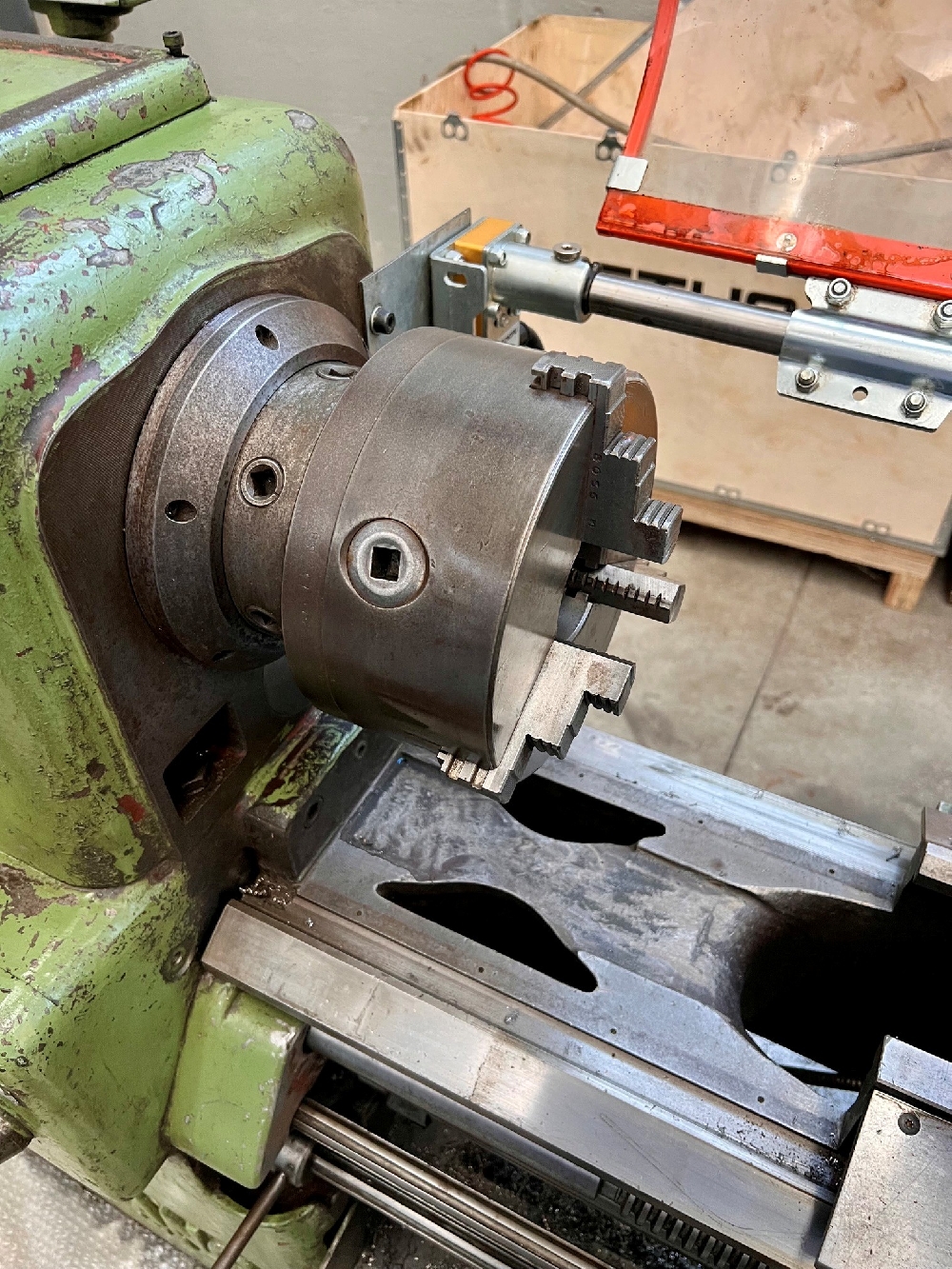

- Chuck diam. 200mm.  3+3jaw
- Quick change tool post type B with n.03 tool olders
- Indipendent chuck 4 jaw diam. 315 mm.
- Tailstock MK 3
- Steady rest



TECHNICAL DATA INDICATED CANNOT BE CONSIDERED AS BINDING
