CONVENTIONAL LATHE "SAIMP"

Model: KSS 180 (180X1000)
Year:
Number:
Code:

Technical info:

Height centres	mm.	180
Distance between centres	mm.	1000
Max swing over bed	mm.	360
Max swing over carriage	mm.	200
Spindle bore	mm.	43
Internal taper of tailstock quill	MK	3
Spindle speed	rpm	45-1500
Motor power	Hp	3
Dimensions	mm.	1900x800x1300h
Weight	Kg.	1500

ACCESSORIES:

- Chuck GFB diam. 190 mm. 3+3jaw
- Quick change tool post type A with n.04 tool olders

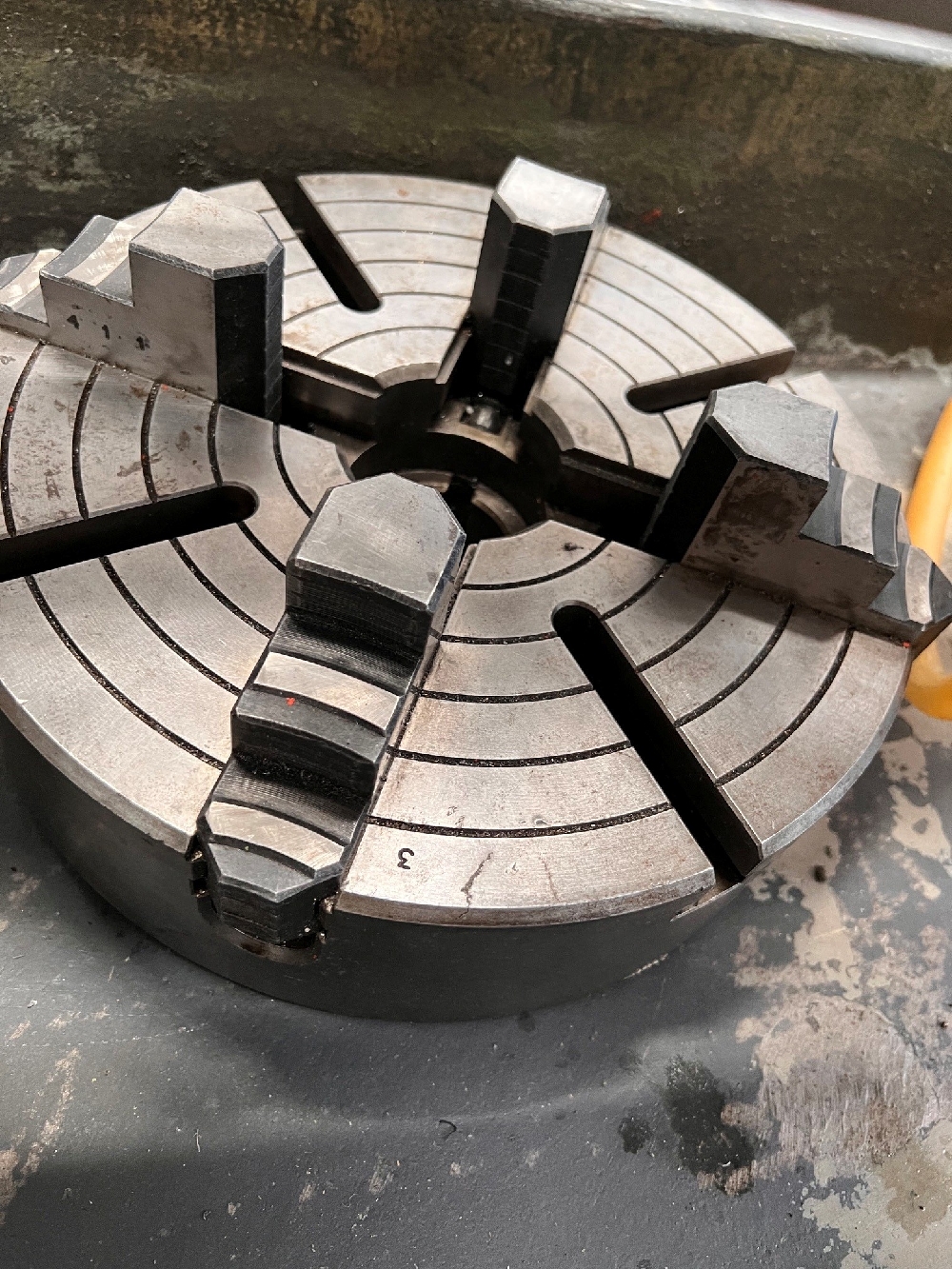

- Indipendent chuck 4 jaw diam. 310mm.
- Tailstock MK 3

TECHNICAL DATA INDICATED CANNOT BE CONSIDERED AS BINDING
